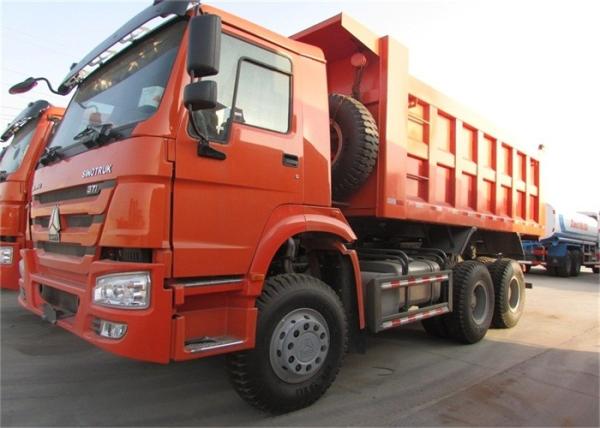

    Sinotruk Howo 336 371HP 6x4 10 Wheeler Dump Truck

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ3257N3447
    Certification : ISO/3C/BV/IFA/SGS
    Price : US$30000-USD40000/unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 units per month
    Delivery Time : 20-30 working days after deposit or LC
    • Product Details
    • Company Profile

    Sinotruk Howo 336 371HP 6x4 10 Wheeler Dump Truck

    Sinotruk Howo 336 371HP 6x4 Tipping Dumper 10 Wheeler Tipper Dump Truck


    SINOTRUK HOWO Tipper Truck, the best choice for you!

    SINOTRUK (CNHTC) HOWO heavy duty trucks--the most advanced and most superior new generation of heavy duty trucks in China, with proprietary brand and intellectual property right, was developed by SINOTRUK (CNHTC) by applying the world advanced heavy duty truck key technology aiming at the market of the world.


    In order to Improve our quality we Obtain many Important certification in the past 15 years

    CCC(China Compulsory Certification) WMI ( World Manufacturer Identifier)
    BV (Bureau Veritas) ISO9001 SGS


    HOWO heavy duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like comfortability, safety and accessibility.


    The launch of HOWO heavy duty truck embodied the enterprise operation philosophy of SINOTRUK (CNHTC) of pursuing the optimized customer value constantly. It will make the customer be proud of his correct option by its strong working ability, pleasurable interior and exterior trimmings, and better safety, comfortability, easy to operate, low fuel consumption and easy to maintain.


    Production Name
    336 371 HP 6x4 Dump Truck
    Truck Model
    ZZ3257N3447A
    Dimension(Lx W xH)(mm)
    8614x2496x3450
    Approaching angle/Departure angle(°)
    16/70
    Overhang(front/rear) (mm)
    1500/700,725
    Cargo thickness(mm)
    Bottom:8mm, Side:6mm
    Cargo body size(L*W*H, mm) (mm)
    5600x2300x1500
    Curb weight(kg)
    11930
    Lift type of Carriage
    middle lifting Or Front Lifting
    Loading Weight(kg)
    40000
    Fuel tanker capacity(L)
    400
    Front axle
    HF9
    Rear axle
    HC16
    Color
    Red, White , Blue , Green , or as you ned
    Tyre
    1200R20 11pics
    Cab
    HW76,(one sleeping, with air-condition)
    Engine(Steyr technology, made in China)
    Model
    WD615,water-cooled,four

    Strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
    Fuel type
    Diesel
    Horse Power,max
    371HP
    Emission
    EURO2
    Transmission
    Model
    HW19710
    Service brake
    Service brake
    Dual circuit compressed air brake
    Parking brake
    spring energy, compressed air operating on rear wheels
    Steering system
    Model
    ZF8098
    Electrical system
    Battery
    2X12V/165Ah
    Alternator
    28V-1500kw
    Starter
    7.5Kw/24V



    SINOTRUK (CNHTC) HOWO series 6x4 dump trucks (tipper trucks) are designed by SINOTRUK comprehensive with the world’s most advanced automotive technology and mature, reliable assembly parts.


    Chassis:

    1, Engine: HOWO series dump truck equipped with the SINOTRUK mature WD615 Euro II turbocharged water-cooled diesel engine, horse power covering 266-420Ps, fuel consumption lower.

    2, Cab: Cab passive-safety performance reaches the world advanced level, the cab installation uses a four-point suspension to make the drivers more high driving comfort;

    3, Clutch: Diaphragm spring clutch, diameter 430mm;

    4, Brake: WABCO brake system and VOSS connectors, more safe and reliable;

    5, Steering: ZF steering system, hydraulic power assistance;

    6, VDO electrical instrumentation to improve the reliability of the electrical system

    7, Maximum loading capacity can be 40-50tons.


    Cargo Box:




    Shipment of Our 336 371 HP 6x4 Dump Truck

    1. Flatrack container

    2. By bulk ship

    3. By RO-Ro ship : Pirce is high but protect the trailer very well
