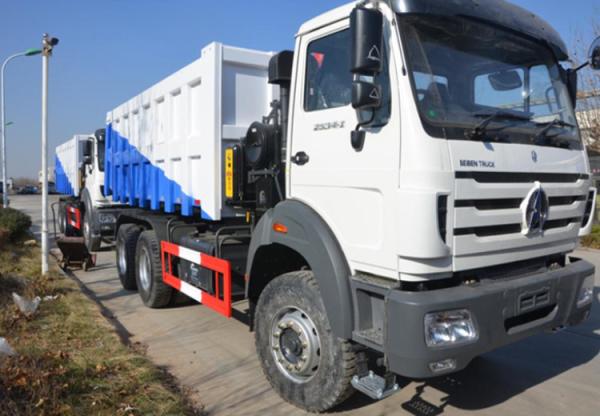

    Beiben 6x4 NG80B Tipper 10 Wheeler North Benz Truck

    Ask Lasest Price
    Brand Name : North Benz, Beiben
    Model Number : 2638S
    Certification : ECER29/SGS/ISO/VGA
    Price : US$40000-55000/unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200units/month
    Delivery Time : 30-40 working day
    • Product Details
    • Company Profile

    Beiben 6x4 NG80B Tipper 10 Wheeler North Benz Truck


    North Benz Truck Beiben 6x4 NG80B Tipper Truck 10 Wheeler Super Dump Trucks


    By virtue of complete technology and equipment introduction from German Daimler Benz, after fully optimization and promotion, the North Benz trucks are characterized by high reliability, high safety, large loading capacity and high cost performance.


    Beiben 6x4 NG80B Tipper 10 Wheeler North Benz TruckBeiben 6x4 NG80B Tipper 10 Wheeler North Benz Truck


    The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now our trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.


    All series products of Bei Ben Trucks are well received by customers both at home and abroad. We welcome more friends to cooperate with us.

    Model6x4 dump truck
    CabinFull steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C
    EngineType: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
    Model:WP10. 380E32WEICHAI Diesel engine
    MAX Horse power:380HP/280KW
    Displacement(L):9.726liter (Euro 2 standard)
    Max torque:1500NM@1200-1600rpm
    Bore/stoke:126mm/130mm
    Gear boxMax torque:2000NM
    Model:12JS200T, mechanism,12gears,2reverse gear, manual, synchronization
    Speed:12speed,2reverse
    Axle(front/rear)
    Front axleDouble-shoe pneumatic brake, non-driving steering axle
    TandemDouble-shoe pneumatic brake, casting, double reduction driving axle
    ClutchSingle dry frictional disc,Hydraulic boosting
    BrakeService brake: Brake gap can be adjusted automatically, double circulation air brake system
    Parking brake: Potential springs pressing on middle and rear wheels
    Engine brake: Engine exhaust brake(EVB)
    Steering

    TAS85, driver sit at the left hand side


    Electric Equipment
    Operating voltage:24Vnegative grounded
    Starter:24V,5.4KW
    Alternator28V,758W
    Battery voltage12V/135Ah,cigar lighter
    FrameFish belly, shape, variable width, variable sections, side beam structure.
    Tyre12+1 spare tyre with rim
    12.00-R20
    Suspension system: strongthen heavy duty Leaf spring type
    Front/Rear12/12/13
    Dump body:
    Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel
    Lifting type: Front lifter “T” type hydraulic system.
    Overall dimension(mm): 11730x2500x3484(Length x width x height)
    Wheelbase1950+4600+1450mm
    Track:
    Front/Rear2045/1872
    Approach/Departure angle26/27
    Front /Rear overhang1410/2320
    Max speed90km/h
    Kerb weight:15500kg
    Oil tank capacity300L fuel tank


    Q: Are You The Qualified Factory?Q: What Is Your Main Products?

    1. We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer,cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer,stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design


    2. As the first class the agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck,
    fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with great price and service advantages.


    3. Except trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane and excavator etc.

    CCC(China Compulsory Certification)
    WMI ( WORLD MANUFACTURE)
    BV (Bureau Veritas)
    ISO9001

    Q: Where Is Your Main Markets? Which Country That You Already Cooperate With?

    Our company has enjoyed great preference by customers from Africa, South America, middle east, North Asia, South Asia and South east Asia
    So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Fiji,
    Uganda, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru,Uruguay, Argentina etc.

    Q: How To Visit Your Factory?

    1. When you plan to visit our factory, we suggest book the ticket to Beijing International Airport, then only need take 1.5 hours high speed train to our office in Jinan., we can pick you up at the train station to our factory.


    2. if you arrive in Shanghai or Guangzhou, you can fly to Jinan within 2.5 hours will arrive Jinan Airport, we can arrange to pick you up at the airport.
