    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ1257N3247
    Certification : ISO/3C/BV/IFA/SGS
    Price : US$35000-USD55000/unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 units per month
    Delivery Time : 15-20 working days after deposit or LC
    • Product Details
    • Company Profile

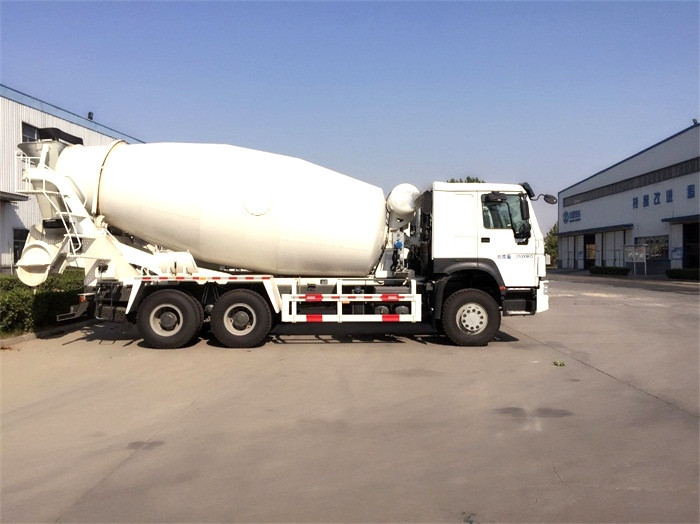

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck On Sale in africa market

    SINOTRUK HOWO Mixer Truck, the best choice for you!

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.

    Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.

    SPECIFICATION

    VEHICLE SPECIFICATION DESCRIPTION
    Truck Model ZZ1257N3241
    Type of Vehicle 8m3 Concrete Mixer Truck
    Truck Brand SINOTRUK—HOWO
    Driving Position Left hand Driving
    The Total Mass 25,000kg
    Dead Weight 12500
    Max speed(km/h)(km/h) 90
    Color Optional
    Manufacture China National Heavy Duty Truck Group Co., Ltd.
    Chassis & Add Components
    Frame Details parallel ladder with U-profiles and riveted cross members
    Dimension(Lx W xH)(unloaded)(mm) 9518x2496x3940
    Approaching angle/Departure angle(°) 16/20
    Overhang(front/rear) (mm) 1500/2125
    Wheel base (mm) 3825+1350
    Engine
    Model WD615.69
    Brand SINOTRUK
    Power 336HP
    Emission EURO II
    Displacement(L) 9.726
    Type water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
    Kind of Fuel Diesel
    Fuel Consumption(L/100km) 25-30L/100km
    Clutch & Gear Box System
    Clutch SINOTRUKΦ430mm diaphragm spring clutch
    Gear Box

    HW19710

    10 forwards and 2 reverse.

    Brand SINOTRUK
    Axles
    Front Axle Model HF9 axle. Capacity
    Rear Axle HC16 axle. Capacity
    Electrical System
    Battery 2X12V/165Ah
    Alternator 28V-1500w
    Starter 7.5Kw/24V
    Brake System
    Service brake Dual circuit compressed air brake
    Parking brake spring energy, compressed air operating on rear wheels
    Auxiliary brake Engine exhaust brake
    Steering system
    Model 8118
    Brand Germany Brand
    Wheels & Tyres
    Type 12.00R20
    Material Steel wire tire
    Quantity 10+1 spare
    Cabin
    Type HW76 standard cabin
    (single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
    Mixer Body
    Agitating Capacity 8m3
    Geometric Volume 14.85m3
    Drum rotation speed 0-14r/min
    Feeding Speed >3.5m3/min
    Water Tank Volume 400L
    Discharge Remain Ratio <0.2%
    Water supply Pressing type

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer TruckSINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer TruckSINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    Mixer Tank:

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck

    First leading advantage: SINOTRUK masters overall R & D core technology and major general component, and has self manufacturing capability

    Second leading advantage: Unified technical thinking, unified planning, unified process means, unified quality standard

    Third leading advantage: High-end professionals, improve product development chain, which make SINOTRUK unique advantage in domestic heavy-duty automobile product development

    We are expecting your trust and cooperation!!
