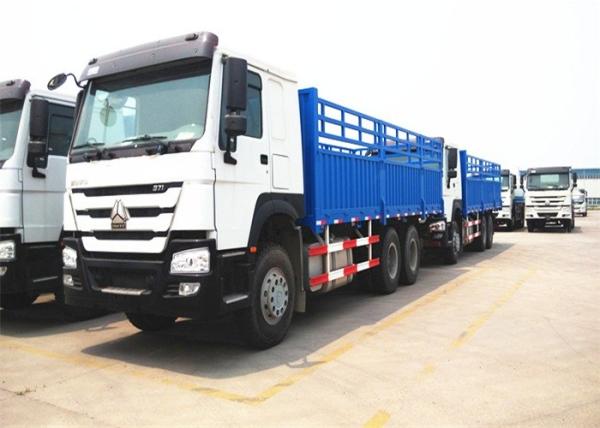

SINOTRUK HOWO Cargo Truck, the best choice for you!
SINOTRUK (CNHTC) HOWO heavy duty trucks--the most advanced and most
superior new generation of heavy duty trucks in China, with
proprietary brand and intellectual property right, was developed by
SINOTRUK (CNHTC) by applying the world advanced heavy duty truck
key technology aiming at the market of the world.
HOWO heavy duty truck adopts the advanced key assemblies which are
reasonably connected by advanced technology. The arrangement of the
complete vehicle is perfect; the main assemblies are harmonious,
unified and reliable, which makes the complete vehicle have better
performance on power, economical efficiency, reliability and
environmental protection.
HOWO heavy duty truck is with luxury and great appearance; it is a
combination of fortitude and streamline, sturdiness and elegance.
It aims at world heavy duty truck level on the ergonomic design
like comfortability, safety and accessibility.
The launch of HOWO heavy duty truck embodied the enterprise
operation philosophy of SINOTRUK (CNHTC) of pursuing the optimized
customer value constantly. It will make the customer be proud of
his correct option by its strong working ability, pleasurable
interior and exterior trimmings, and better safety, comfortability,
easy to operate, low fuel consumption and easy to maintain.
Truck Model | ZZ1257S4641 LHD |
Dimension(Lx W xH)(unloaded)(mm) | 10350x2496x3718 |
Outside Dimension Cargo body (L*W*H, mm) (mm) | 7500x2300x1400 |
Inside Dimension cargo body | 7400x2300x(800+600)mm |
Cargo thickness(mm) | Bottom:3mm, Side:1.5mm, the body plate detachable |
Wheel base (mm) | 4600+1350 |
Max speed(km/h) | 902 |
Loading Weight(kg) | 24m3 |
Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water
cooling,turbocharged and intercooling, directly injection |
Fuel type | Diesel |
Horse Power, | 371hp |
Emission | Euro2 |
Fuel tanker capacity (L) | 300 |
Transmission | HW19710 |
Brake system | brake system |
Steering system | spring energy, compressed air operating on rear wheels |
| ZF8118 |
Front axle | HF9 drum type, Steering with double T-cross section beam |
Rear axle | HC16 |
Color | Color as customer's requirement |
Tyre | 1200R20 TR668 10+1 |
Electrical system | 2X12V/165Ah |
| 28V-1500kw |
| 7.5Kw/24V |
Cab | HOWO76(one sleeping, with air-condition), all-steel forward
control,55ºhydraulically tiltable to the front, 2- arm windscreen
wiper system with three speeds, laminated windscreen with casted-in
radio aerial, hydraulically damped adjustable driver's seat and
rigid adjustable co-driver's seat, with heating and ventilating
system, outer sun visor, adjustable roof flap, with stereo
radio/cassette recorder, safety belts and adjustable steering
wheel, air horn, with 4-point support fully floating suspension and
shock absorbers |
HOWO cargo trucks suitable for Logistics business, for transport
all kinds of goods, such as machine, equipment, coal, etc.
Chassis:
1, Engine: HOWO series dump truck equipped with the SINOTRUK mature
WD615 Euro II turbocharged water-cooled diesel engine, horse power
covering 266-420Ps, fuel consumption lower.
2, Cab: Cab passive-safety performance reaches the world advanced
level, the cab installation uses a four-point suspension to make
the drivers more high driving comfort;
3, WABCO four-channel ABS system and brake system
4, German VDO instrument and electrical control module, large LCD
screen, intelligent control, to grasp the state of the vehicle
5, USA HUV rubber chassis suspension, light weight, toughness and
over loading,
6, German ZF8098 steering system, portable, flexible, reliable and
easy to repair
7, Engine with WABCO two-cylinder air compressor and BORGWARNER
turbocharger, to improve the reliability and security of the brake
valves.
8, MANN HUMEL diesel filters and air filters guarantee the air
clean, improve fuel economy greatly, reduce the noise, and put an
end to the abnormal wear of the engine.
9, MAN EVB exhaust valve brake system, to improve braking safety,
reducing brake wear, and greatly reduce drivers’ fatigue.
Convenient maintenance, and low cost.
10, German VOSS pipe joints, easy installation, good sealing,
stable air pressure
By Roro or Bulk or Flat Rack Container according to your specific
requests.
1, the whole truck warrenty is 1 year or 50000km, base on whichever
comes first.
2, professional sevice team, enough spare parts to make you away
from future worries.
3, professional trainning teachers for your drivers or engineers on
repair and maintenance
