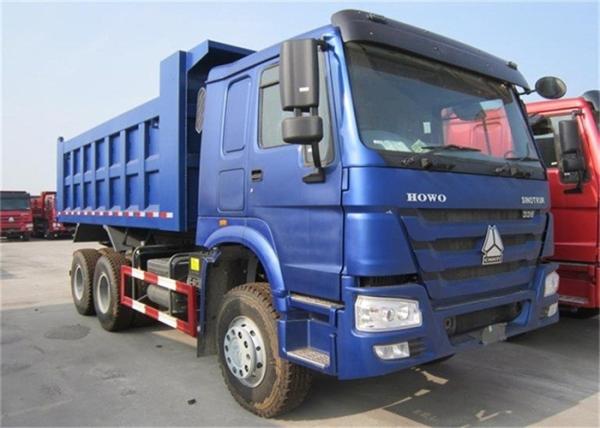

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ3257N3647
    Certification : ISO/3C/BV/IFA/SGS
    Price : US$30000-USD40000/unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 units per month
    Delivery Time : 20-30 working days after deposit or LC
    • Product Details
    • Company Profile

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

    SINOTRUK Tipper Truck Sinotruk HOWO 6x4 336hp 371hp 40tons Dumper Tipping 10 Wheeler Dump Tipper Truck



    Chassis parameters
    Chassis modelZZ3257N3647Chassis brandSINOTRUK
    Overall dimensions7865x2496x3025mmWheel base3625+1350mm
    Front/rear wheel track2022, 1830/1830mmFront/rear suspension1500/890mm
    Approach/departure angle19/50°Maximum speed75km/h
    Chassis ManufacturerChina National Heavy Duty Truck Group Co.,Ltd
    CabConfiguration

    HW76 cab,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers

    Air conditioner

    Colorwhite,other color is optional
    EngineModelWD615.47
    EmissionEuro 2
    Type6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling ,diesel engine
    Rated power371hp,rated power speed 2000rpm
    Displacement9726ml
    Max.torque1500N.m
    Bore x stroke126x130mm
    ManufacturerChina National Heavy Duty Truck Group Co.,Ltd
    TireSize12.00R20 Steel wire tire.
    Number10+1 nos
    Clutch430 diaphragm clutch
    Front axleHF9
    Rear axleHC16
    SteeringZF8118 Power assisted steering.
    Drive form6X4
    Rated voltage24V,DC
    TransmissionsHW19710 gearbox ,10 speed forward 2 reverse
    Steering wheelLeft hand drive
    Selective configuration
    If there is a slight change in the chassis parameters above,please take the actual product as the standard

    Dump truck structure parameters
    Van body dimensions5600X2300X1000mmSide wall6mm
    Bottom plate8mmVan body materialCommon steel
    Lifting positionMiddleDumping directionRear
    Oil CylinderDomestic 220Color and LogoOptional
    Standard configurationchassis,sub frame,van body side 6mm bottom 8mm,domestic middle lifting hydraulic cylinder 220,common steel,four longitudinal beams,rectangular van body,single door
    Selective configuration

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

    40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck




    Cargo Box:
