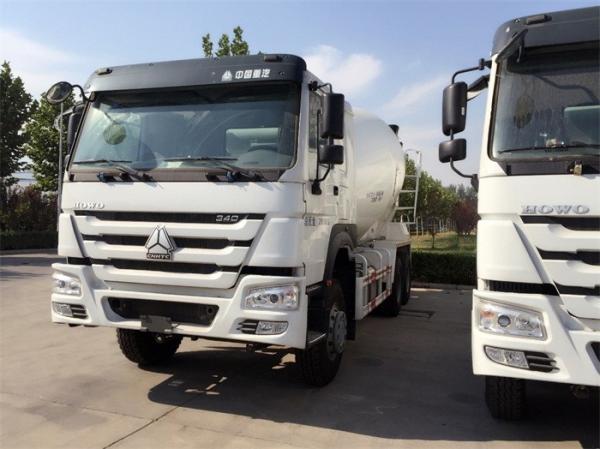

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

    Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers

    Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers
    • Buy cheap Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer from wholesalers

    Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ1257N3247
    Certification : ISO/3C/BV/IFA/SGS
    Price : US$35000-USD55000/unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 units per month
    Delivery Time : 15-20 working days after deposit or LC
    • Product Details
    • Company Profile

    Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

    HOWO Sinotruk Low Price Truck Mounted Concrete Transit Mixer 10m3 Mixing Camion


    SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck On Sale in africa market

    SINOTRUK HOWO Mixer Truck, the best choice for you!

    SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.


    Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.


    MIXER TRUCK
    ModelZZ1257N3647A (Left Hand Driving)
    BrandSINOTRUK–HOWO
    Dimension(L x W x H)(mm)9500×2550×3990
    Mixer tanker (Lx W x H) (mm)10 m3

    mixer tank: main tank 5mm alloy steel wear resistant material,

    front tank head 8mm alloy steel wear resistant material

    Standard configuration:

    Sub frame, domestic reducer,

    Germany ZF5300 reducer,

    Germany REXROTH hydraulic pump,

    Germany REXROTH hydraulic motor,

    KAIPENG radiator,

    Selective configuration:

    1. Emergency high pressure oil hose(4 pieces), 12m emergency oil hose(Italy), water cannon, large tool box, electric water supplying system.

    2. Italy Bonfiglioli / Italy PMP reducer, Italy PMP / Italy MESSOR / America EATON / America SAUER hydraulic pump, Italy PMP / America EATON / America SAUER hydraulic motor.

    Approach/Departure angle(°)19/26
    Overhang(front/rear) (mm)1500/1739
    Wheel base (mm)3850+1350
    Max speed(km/h)75
    Curb weight(kg)12290
    Loading weight(kg)35000
    Fuel tanker capacity(L)300
    Fuel consumption(L/km)20-40 L/100 km
    ClutchSingle-plate dry clutch Φ430mm
    Fuel typeDiesel
    Horse power336HP
    EmissionEURO II
    EngineWD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, directly injection
    TransmissionHW19710,10 forwards and 2 reverse
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy, compressed air operating on rear wheels
    Auxiliary brakeEgine exhaust brake
    Model8118 hydraulic steering with power assistance
    HF9 , Steering with double T-cross section beam
    HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
    Tire12.00R20
    CabRight Hand Driving
    Battery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    HOWO76 cab, one sleepers, with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

    Diesel HW76 Cabin Mounted 10m3 Concrete Transit MixerDiesel HW76 Cabin Mounted 10m3 Concrete Transit MixerDiesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer



    Mixer Tank:








    First leading advantage: SINOTRUK masters overall R & D core technology and major general component, and has self manufacturing capability


    Second leading advantage: Unified technical thinking, unified planning, unified process means, unified quality standard


    Third leading advantage: High-end professionals, improve product development chain, which make SINOTRUK unique advantage in domestic heavy-duty automobile product development



    We are expecting your trust and cooperation!!
